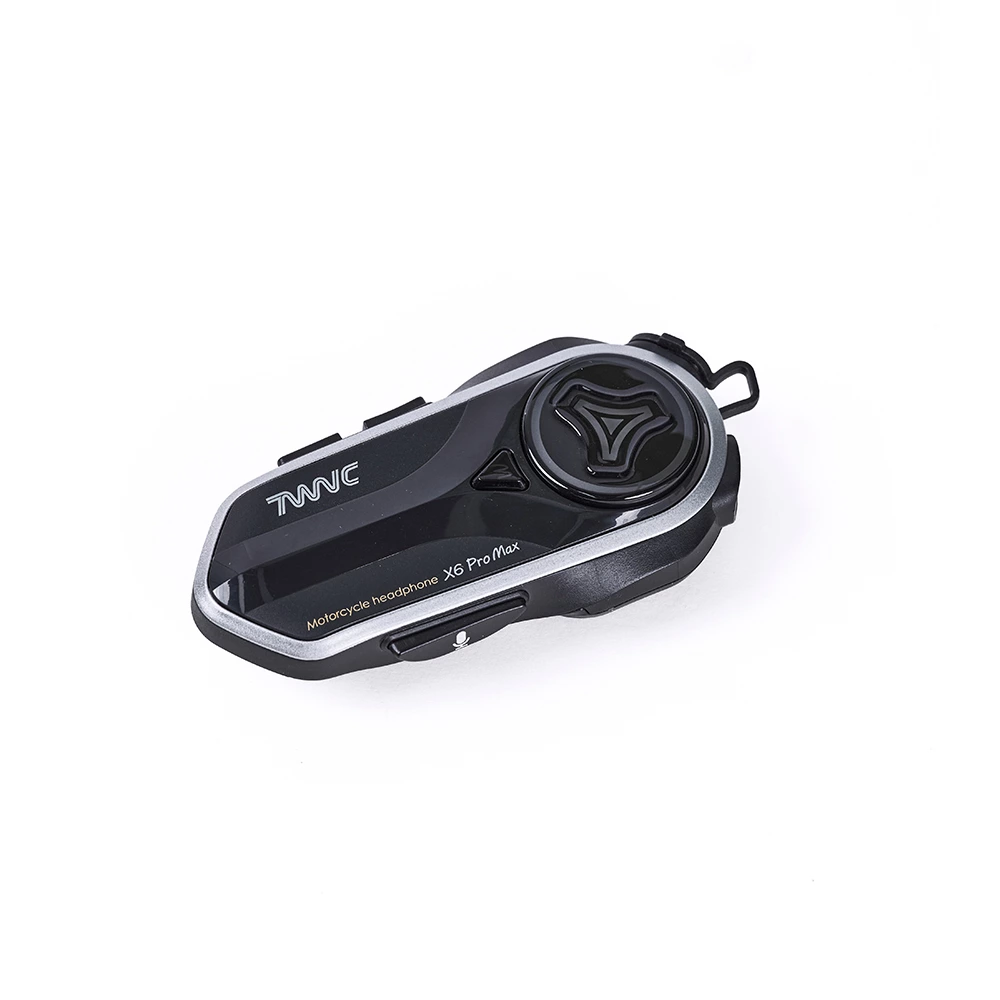

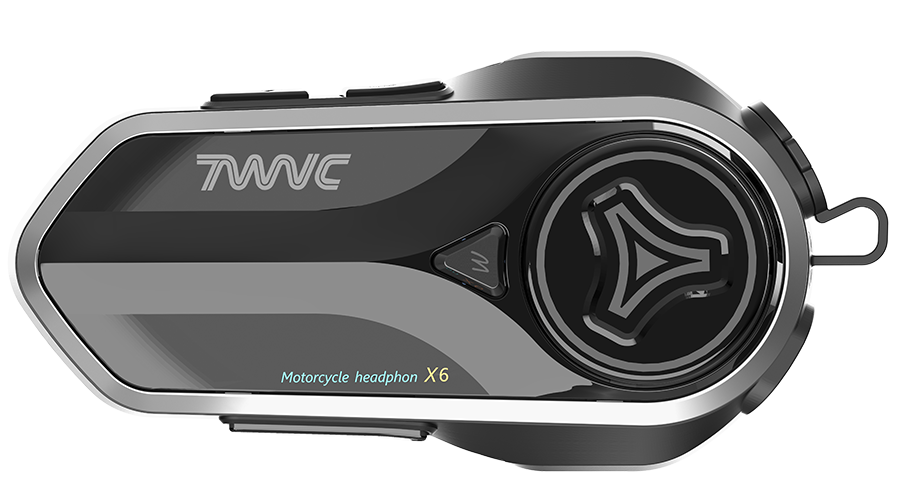

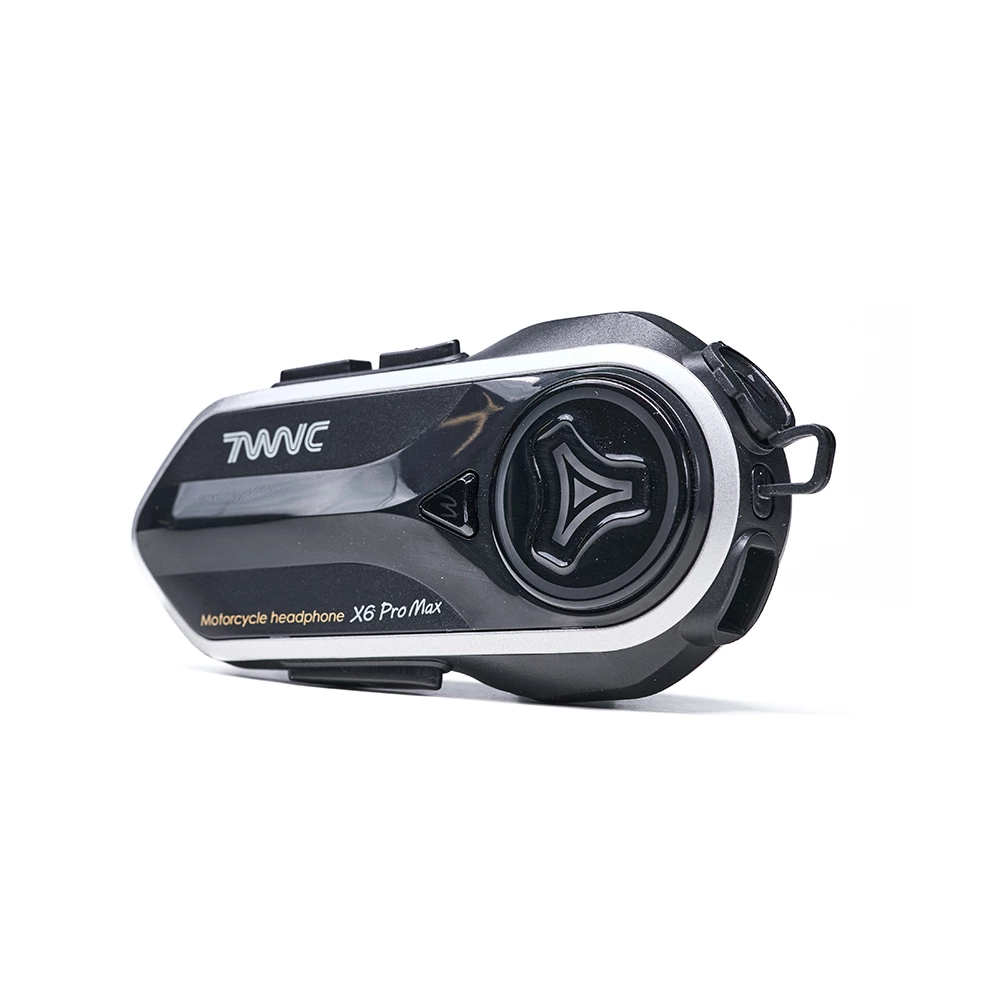

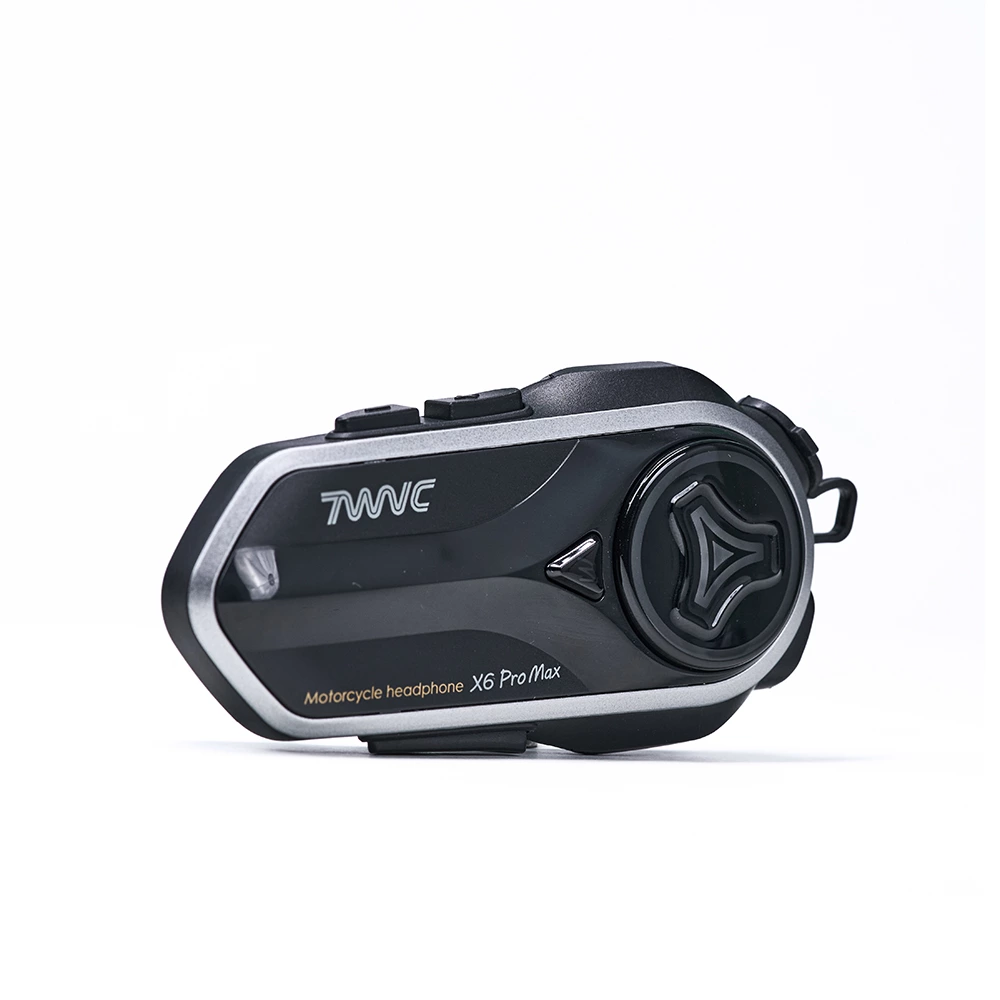

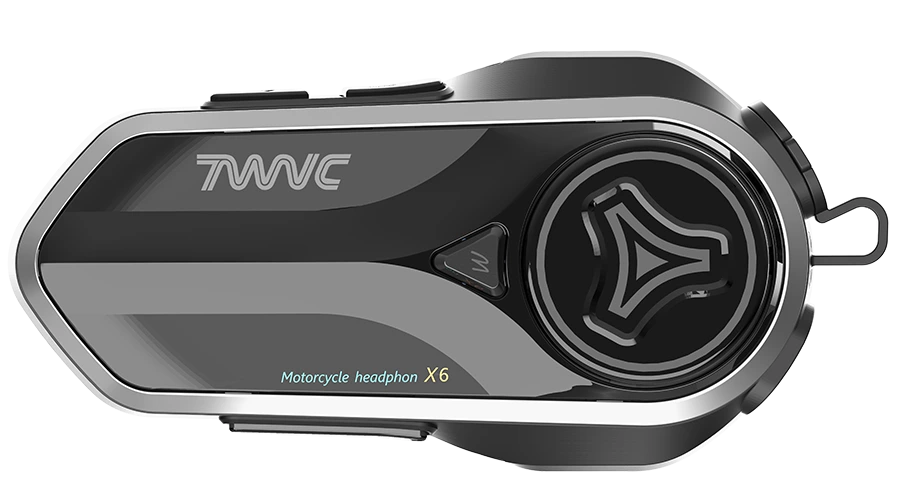

X6 Pro Max Multi-Person Intercom Bluetooth Headset - Product Introduction

Core Highlights: Bluetooth 5.4, supports 10+N multi-person intercom, network group intercom and cross-brand bridging. Features AI voice wake-up, dual-phone connection and HiFi sound quality, with IP67 waterproof rating and 1300m long-distance intercom, paired with fast charging for efficient and convenient riding communication.

I. Product Overview

X6 Pro Max is a multi-person intercom Bluetooth headset that supports both network group intercom and cross-brand bridging functions. It breaks through the limitations of traditional intercom headsets, enabling flexible and efficient communication among multiple riders, and can also connect with headsets of other brands to expand the communication scope, providing a comprehensive communication solution for riding teams.

II. Appearance Design

Material: Adopting ABS+PC composite material, featuring high durability and impact resistance

Overall Dimensions: (Length) 99mm × (Width) 47mm × (Thickness) 23mm

Note: The product color and silk screen shall be subject to the confirmation of the sample prototype

III. Core Functions

1. Intercom & Connectivity

• Bluetooth 5.4: Equipped with the latest Bluetooth 5.4 version, ensuring stable transmission and low power consumption

• 10+N Multi-Person Intercom: Supports intercom among 10 active participants and N listeners, meeting the needs of riding teams of different sizes

• Multiple Modes: Includes Friend Mode (automatic connection with same-model headsets), Private Mode (only paired headsets can join), and Bridging Mode (connects with other brands' headsets via Bluetooth, allowing them to participate in multi-person intercom)

• Long-Distance Intercom: Up to 1300m intercom distance (maximum straight-line distance without obstruction in urban areas); unlimited distance for network group intercom

• Cross-Brand Communication: Enables one-on-one intercom with headsets from other brands

• Dual-Phone Connection: Can connect two Bluetooth devices simultaneously, such as Bluetooth GPS + mobile phone or two mobile phones

2. Intelligent Voice Control

• One-Click Voice Assistant: Activates mobile phone voice assistant with a single key press

• AI Voice Wake-Up: Wakes up the mobile phone voice assistant by saying "Hi! Pangu"

• AI Voice Commands: Supports commands like "Previous Song", "Next Song", "Play Music", "Pause Music", "Answer Call", "Reject Call", "Increase Volume", and "Decrease Volume"

3. Entertainment & Sound Quality

• HiFi Sound Quality: The clip is equipped with a HiFi speaker for immersive sound experience

• Dual-Function Microphone: 2-in-1 microphone design, compatible with half-face/full-face replaceable microphones

• Mixed Sound Playback: Can play mobile phone Bluetooth audio synchronously during intercom

• Adjustable EQ: Customize different sound effects via the supporting APP according to personal preferences

4. Practical Design

• IP67 Waterproof & Dustproof: Professional grade, suitable for various harsh riding environments

• APP Control: Connects to a dedicated APP for easy headset management

• Use While Charging: Supports simultaneous charging and usage

• Fast Charging: Supports 5V2A fast charging, fully charged in 30 minutes

• Multi-Level Volume Adjustment: Independently adjusts headset volume, prompt tone, and incoming call ringtone

IV. Detailed Parameter Configuration

V. Operation Guide

1. Button Functions (5-Key Design: Function Key*1, M Key*1, + Key*1, - Key*1, Mic Key*1)

• Power On/Off: Press and hold "Function Key" + "M Key" simultaneously for 2 seconds to turn on/off

• Activate Intercom: Short press "M Key" once to enter intercom mode, switching between "Friend Mode", "Private Mode", and "Intercom Disabled" in sequence

• Start Bridging Pairing (Active Device): Long press "Mic Key" for 2 seconds to start Bluetooth friend mode; long press "Mic Key" again to turn it off (searches for and connects to other brands' headsets)

• Wait for Bridging Pairing (Passive Device): Long press "M Key" for 2 seconds to wait for Bluetooth friend mode; long press "Mic Key" again to turn it off (waits for connection from other brands' headsets)

• Mobile Voice Assistant: Long press "Function Key" for 1.5 seconds to activate

• Microphone Control: Short press "Mic Key" to turn on/off the microphone in intercom mode

• Volume Adjustment: Short press "+ Key" to increase volume, short press "- Key" to decrease volume

• Switch Songs: Long press "+ Key" to switch to next song, long press "- Key" to switch to previous song

• Call Control: Short press "Function Key" once to answer a call; short press twice to reject a call

• Disconnect Bluetooth: Short press "+ Key" and "- Key" simultaneously to disconnect the current Bluetooth device

• Reset: Long press "Function Key" for 8 seconds to force reset

• Light Control: Double click "Function Key" to turn on/off the lights

2. Bluetooth Connection Operation

1. Press and hold "Function Key" + "M Key" simultaneously for 2 seconds to turn on the device

2. The device defaults to Bluetooth mode after startup; search for the Bluetooth device named "X6 Pro Max" on the mobile phone and connect

3. To connect two Bluetooth devices, the second device should search for and connect to "X6 Pro Max" within 3 minutes after startup

3. Intercom Connection Operation

• Friend Mode: Short press "M Key" after startup to enter Friend Mode, which automatically connects to other devices in Friend Mode within the connectable range. Up to 10 people can intercom in Friend Mode, and N people can listen as audience. Note: After successful networking, to re-network, all devices in the network must exit Friend Mode (short press M Key to switch modes or restart) and re-network

• Private Mode Networking: 1. The host short presses "M Key" to switch to Private Mode (short press "M Key" twice after startup to switch to Private Mode), and the first device entering Private Mode becomes the host (No.1 Device); 2. Other devices automatically connect when switching to Private Mode by short pressing "M Key"; 3. Slave devices become No.2 to No.10 in sequence after entering Private Mode; after pairing with No.10 Device, other slave devices will broadcast "Listener Joined" when pairing; 4. After all pairings are completed, the host (No.1 Device) short presses M Key to end pairing, and no other devices can join the intercom after that

• Bridging Mode: Long press "Mic Key" in any mode to enable Bluetooth Friend Mode and enter Bridging Mode. X6 Pro Max automatically searches for connectable devices, and other brands' headsets need to be in Bluetooth waiting for connection or intercom waiting for connection state. After successful connection, other brands' headsets can participate in multi-person intercom (if X6 Pro Max is in Friend Mode, other brands join Friend Mode intercom; if in Private Mode, join Private Mode intercom). Other brands joining multi-person intercom do not occupy the intercom quota

4. Interface Definition

• Type-C Interface: Charging port, DC5V2A input

• Mini USB Interface: Speaker interface for audio output

5. Indicator Light Status

Indicators: 1 Blue LED, 1 Green LED (Mode Key Light), 2 Blue LEDs (Power Key Light)

• Mode Key Light: Blue light flashes during Bluetooth search; blue light stays on when Bluetooth is connected successfully; green light stays on during charging and turns off when fully charged

• Power Key Light: Blue light turns on when the device is powered on

VI. Packaging Accessories

Standard Accessory List (Fully Equipped, Ready to Use Out of the Box):

• Headphone Microphone (Mini USB Connector / 2-in-1 Half-Face & Full-Face)*1

• 3M Adhesive Fixing Bracket*1, Iron Clip Fixing Bracket*1

• Type-C 100cm Charging Cable*1

• Microphone Fixing Sheet (Velcro Design)*2, Headphone Fixing Sheet (Velcro Design)*2

• Operation Manual & Warranty Card*1
