X5 Pro Intelligent Intercom Audio Device

Product Introduction

The X5 Pro comes with a comprehensive upgrade, featuring new cool special effect lighting and convenient network intercom functions. Integrating Bluetooth audio, two-way/multi-way intercom, and intelligent control, it is suitable for diverse scenarios such as two-person travel and team collaboration, bringing you a more excellent audio interaction experience.

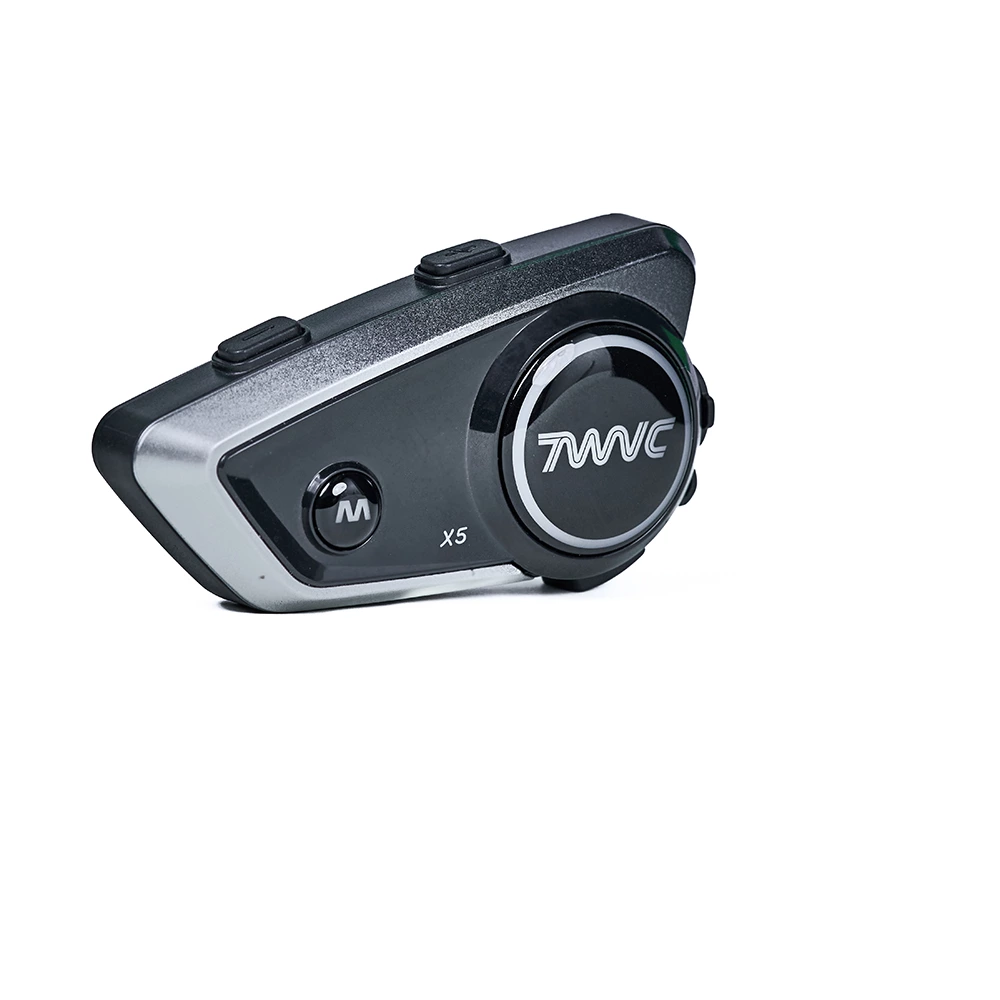

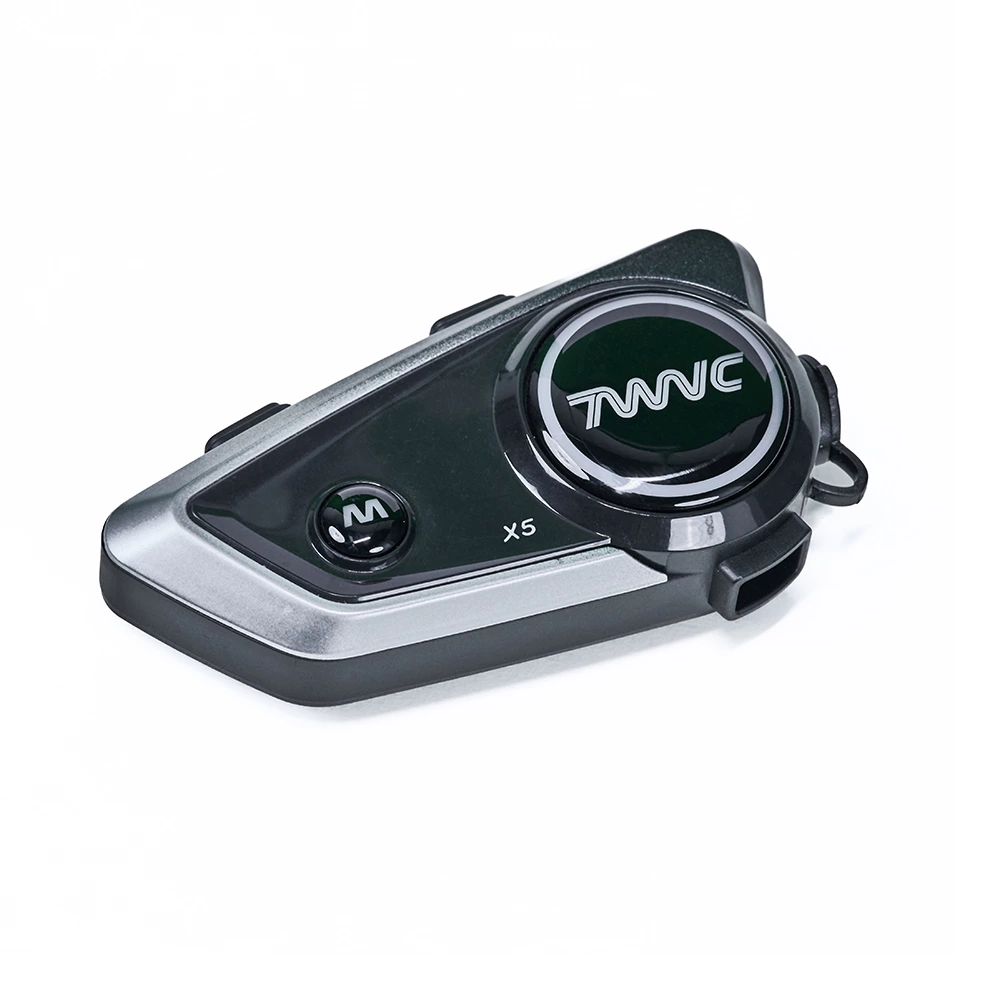

Design

Product color and silk screen are subject to the physical prototype

• Material: ABS+PC high-quality material, sturdy and durable

• Overall Dimensions: 86*40*26mm, compact and portable

Core Functions

Upgrade Highlights

• Bluetooth 5.4 Upgrade: Equipped with Bluetooth 5.4 version for more stable connection and longer transmission distance

• Voice Prompt Upgrade: Fully optimized voice prompt system with more pleasant sound quality; added key press prompt sound, and "Welcome to Qingqi Xun" voice greeting upon startup

• Colorful Lighting Upgrade: Supports multiple colorful lighting effects, which can be freely switched by connecting to the APP, creating a strong atmosphere

Flexible Intercom

• Two-Way Intercom: Supports 600m intercom in open and unobstructed straight line, meeting the real-time communication needs of two-person travel

• Multi-Way Network Intercom: Connect to the APP to achieve unlimited distance multi-way intercom, making team travel and collaboration more efficient

• Interconnected Calls: Can achieve 1-to-1 intercom with third-party brand devices, with stronger compatibility

Audio & Control

• Adjustable EQ Sound Effect: Connect to the APP to customize different sound effects, adapting to various music styles

• Mixed Sound Playback: In intercom state, can connect to mobile phone Bluetooth to play audio at the same time, enjoying entertainment and communication simultaneously

• Intelligent Voice Control: Supports "Hi, Pangu" wake-up command, easily realizing operations such as playing/pausing music, answering/rejecting calls

• One-Key Launch Assistant: Long press the function key for 1.5 seconds to launch the mobile phone voice assistant, freeing hands

Practical Configuration

• IP67 Dustproof & Waterproof: Fearless of dust and shallow water immersion, more assured for outdoor use

• Multi-Device Connection: Can connect two Bluetooth devices at the same time (such as Bluetooth GPS + mobile phone, two mobile phones), adapting to diverse usage scenarios

• Music Sharing: When the device is connected to only one mobile phone, the music sharing function can be activated to share good music with others

• Volume Synchronous Adjustment: Supports adjustment of headphone volume, prompt sound, and mobile phone incoming call ringtone, realizing mobile phone volume synchronous upgrade

• Charge While Using: Supports normal use while charging, with uninterrupted battery life

• Intelligent Power Saving: Automatically shuts down if no device is connected for 10 minutes, extending battery life

Detailed Specifications

Operation Guide

Button Description (1*Function Key, 1*M Key, 1*+ Key, 1*- Key, 1*Mic Key)

• Power On/Off: Long press "Function Key" + "M" Key for 2 seconds

• Enable/Disable Intercom: Short press "M" Key once

• Start Intercom Pairing: Long press "M" Key for 2 seconds in intercom mode

• Launch Mobile Voice Assistant: Long press "Function Key" for 1.5 seconds

• Volume Adjustment: Short press "+" Key to increase volume, short press "-" Key to decrease volume

• Track Switching: Long press "+" Key to switch to next track, long press "-" Key to switch to previous track

• Disconnect Bluetooth: Long press "+" and "-" Keys simultaneously for 1 second

• Enable/Disable RGB Light: Double click "Function Key"

• Answer Call: Short press "Function Key" once when there is an incoming call

• Reject Call: Short press "Function Key" twice when there is an incoming call

• Start Music Sharing: Short press "M" Key twice

AI Voice Commands

Supports "Hi, Pangu" wake-up, and can be voice-controlled: Previous Track, Next Track, Play Music, Pause Music, Answer Call, Reject Call, Increase Volume, Decrease Volume

Connection Operation

Bluetooth Connection

1. Long press "Function Key" + "M Key" simultaneously for 2 seconds to power on

2. After power on, it defaults to Bluetooth mode. Search for the Bluetooth device "X5 Pro" on the mobile phone and connect

3. To connect two Bluetooth devices, search for and connect to "X5 Pro" on the other device within 3 minutes after power on

Intercom Connection

4. Power on two devices (Device 1 and Device 2), and short press the "M Key" once on each to enter intercom mode

5. After entering intercom mode, long press the "M Key" on one of the devices (Device 1) to start pairing

6. Wait for pairing on the other device (Device 2), and there will be a voice prompt when pairing is successful

Music Sharing

7. First connect one device to the mobile phone via Bluetooth

8. Double click the "M Key" on each of the two X5 Pro devices to enter music sharing mode

9. The shared device should not be connected to other Bluetooth devices

10. Wait for successful connection to realize music sharing

Interfaces & Indicators

Interface Description

• Type-C Interface: Charging port, supporting DC5V1A input

• Mini USB Interface: Speaker interface for audio output

Indicator Description

• Blue LED (Mode Key Light): Blue light flashes quickly during Bluetooth search; blue light stays on when Bluetooth connection is successful

• RGB LED (Power Key Light): RGB light fades after power on; red light is on during charging; turns off when fully charged
