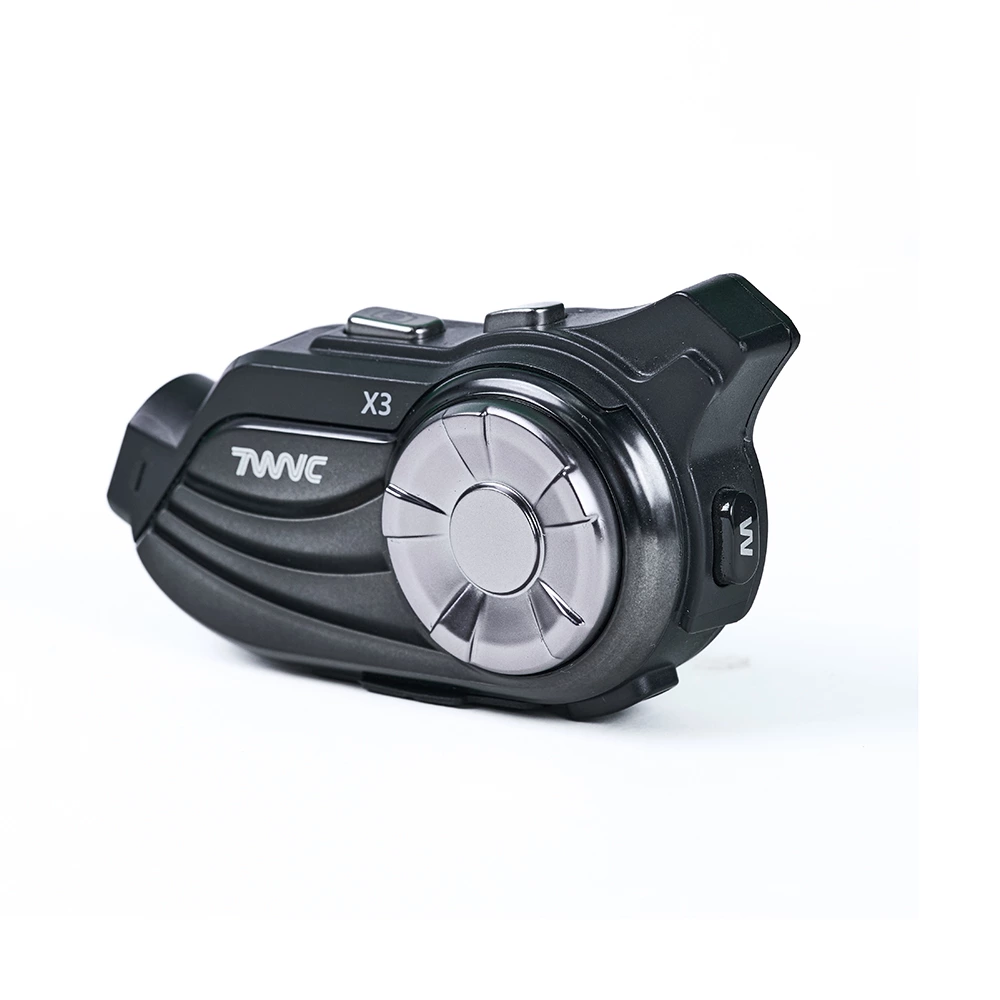

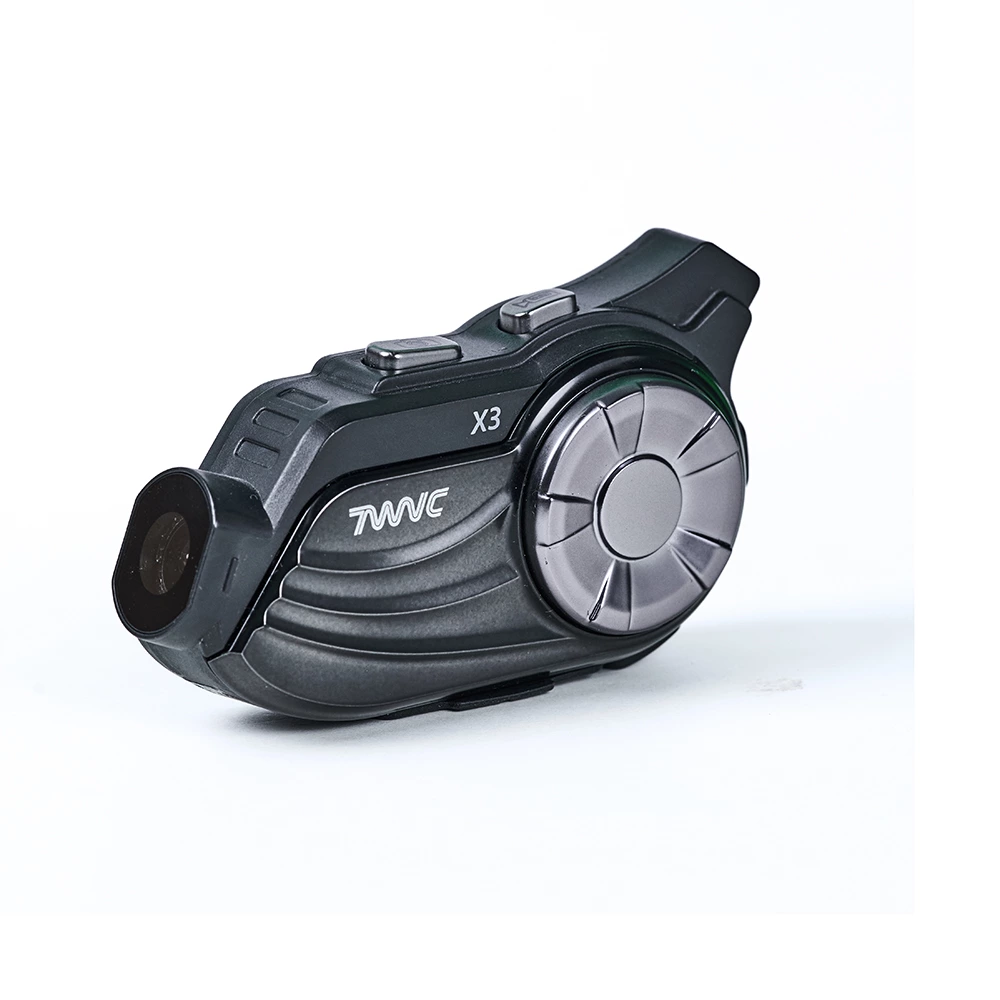

Upgraded Motorcycle Bluetooth Headset - Product Introduction

Core Highlights: Bluetooth 5.0 high-definition interconnection, IP67 waterproof and durable, supporting dual core functions of 600m intercom + 1080P video recording, music sharing and one-click access to intelligent voice assistant, creating a safe and convenient riding communication and entertainment experience for riders

I. Product Overview

This upgraded motorcycle Bluetooth headset breaks brand barriers to achieve cross-brand intercom calls, easily meeting the one-on-one communication needs between riders and front/rear passengers. It also integrates music sharing function, combined with IP67 waterproof design, suitable for various riding environments. Furthermore, it integrates high-definition video recording function, which can easily record wonderful moments and road conditions during riding, with multiple values of communication, entertainment and safety recording.

II. Appearance Design

Material: Adopting ABS+TPU composite material, balancing durability and wearing comfort

Note: The product color and silk screen shall be subject to the confirmation of the sample prototype

III. Core Functions

1. Communication Interconnection

• Bluetooth 5.0 Technology: Supports automatic connection, stable transmission and lower power consumption, compatible with HSP, HFP, A2DP, AVRCP Bluetooth protocols

• Cross-brand Interconnection: Can achieve one-on-one intercom calls with devices of other brands that support public protocols, breaking brand restrictions

• 600m Long-distance Intercom: The intercom distance can reach 600m in open areas (built-in RF PA to enhance signal), enabling real-time communication between riders and passengers without pressure

• Intelligent Voice Prompt: Full-process voice broadcast of operation guidelines, usage status and power information, no need for visual operation during riding

2. Entertainment & Intelligent Interaction

• Dual Music Modes: Supports Bluetooth connection to mobile phones for music playback, and can realize music sharing between two devices; can still play mobile phone audio synchronously during intercom, ensuring both entertainment and communication

• One-click Activation of Intelligent Assistant: Long press the function key for 1.5 seconds to wake up Apple Siri/Google Assistant, making voice control safer

• Colorful Light Effect: Equipped with 3 RGB lamp beads, supporting colorful light gradient, with exclusive light prompts for different working states, combining recognition and aesthetics

3. High-definition Video Recording

• 1080P High-definition Image Quality: Equipped with a professional lens, supporting 1080P full HD video recording, 130° wide angle covering more scenes, F1.8 large aperture ensuring clear shooting in low-light environments

• Flexible Video Recording Control: Supports cyclic video recording (automatic overwriting of old files), one-click photo taking, and remote video recording operation via APP, meeting various recording needs

• High-speed WIFI Transmission: 5G WIFI frequency band, video files can be quickly transmitted to mobile phones or computers, making viewing and sharing more convenient

4. Practical & Convenient Design

• IP67 Waterproof: Professional waterproof rating, calmly coping with rainy days, car washing and other humid environments, no worries during riding

• Multi-level Volume Adjustment: Can independently adjust headphone volume, prompt tone and mobile phone incoming call ringtone, adapting to different noise environments

• Use While Charging: Supports using while charging, avoiding battery anxiety

IV. Detailed Parameter Configuration

1. Scheme & Image Parameters

2. Power Supply & Battery Parameters

V. Operation Guide

1. Button Functions (5-key Design, Easy Operation)

Function Key*1 (Encoder, 360° Rotatable), Mode Key*1, Video Key*1, WIFI Key*1, Reset Key*1

• Power On/Off: Press and hold the Function Key + Mode Key simultaneously for 1.5 seconds (defaults to Bluetooth mode when powered on); perform the same operation to power off when in the on state

• Reset: Press and hold the Function Key + Mode Key simultaneously for 8 seconds

• Call Control: Short press the Function Key to answer/hang up a call when there is an incoming call; quickly short press twice to reject the incoming call

• Volume & Music: Rotate the Function Key left/right to adjust the volume; press and hold while rotating left/right to switch to the previous/next song

• Light Control: Quickly short press the Function Key twice to turn on/off the colorful lights

• Intercom Control: Short press the Mode Key to turn on/off the intercom mode; press and hold the Mode Key for 1.5 seconds to start pairing after turning on; quickly short press the Mode Key twice to turn on/off music sharing

• Video Recording Control: Press and hold the Video Key for 1.5 seconds to turn on/off video recording; short press to pause/resume video recording

• WIFI & Photo Taking: Press and hold the WIFI Key for 1.5 seconds to turn on/off WIFI; short press the WIFI Key for quick photo taking when the video recording is on

2. Interface Definition

• Type-C Interface: Has both data transmission and charging functions, can be directly connected to a computer to copy files from the T-card

• Mini USB Interface: Speaker interface for audio output

• T-card Slot: Memory expansion slot, maximum support 128G storage

3. Light Status Prompt

• Charging Status: Red light is on when charging; turns off in the off state after being fully charged, and resumes colorful gradient in the on state

• Video Recording Status: Green light flashes 5 times and then turns off when turned on; red light flashes 5 times and then turns off when turned off

• WIFI Status: Blue light flashes during searching; blue light stays on for 2 seconds and then turns off after successful connection

• Bluetooth Status: Purple light flashes during searching; colorful gradient after successful connection

• Intercom Status: Yellow light flashes during searching; colorful gradient after successful connection

VI. Packaging Accessories

Standard Accessory List (Fully Equipped, Ready to Use Out of the Box):

• Headphone Microphone (Mini USB Connector, Without MIC)*1

• Detachable Half-face MIC*1, Detachable Full-face MIC*1

• Headphone Microphone Fixing Bracket (with 3M Adhesive)*1

• Type-C 100cm Charging Cable*1

• Microphone Fixing Sheet (Velcro Design)*2, Headphone Fixing Sheet (Velcro Design)*2

• Alcohol Pad*1, User Manual*1
